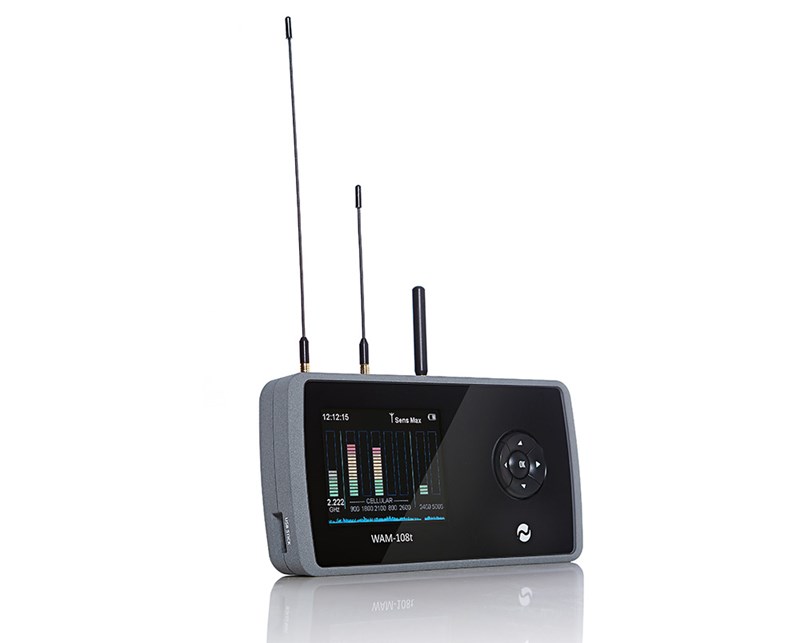

WAM 108t Multiband Wireless Activity Monitor

Description

WAM 108t Multiband Wireless Activity Monitor

The WAM-108t Multiband Wireless Activity Monitor is a high specification handheld multiband detector for the detection and logging of all types of radio frequency devices.

The WAM-108t also has a separate 2.4 GHz and a new 5 Ghz band for the rapidly growing threat from Wifi/Bluetooth/Video and other latest generation ‘Store & Forward’ devices. Such devices can for example, record audio over long periods and then transmit it in short regular bursts. It will also detect other devices that use these bands such as covert wireless video transmitters. Complex algorithms analyse the detected signal to help identify the signal type. ie. Bluetooth, Wifi, or other 2.4Ghz or 5Ghz signals.

The WAM-108t can be used in any environment where radio frequency detection is required such as sensitive meeting rooms/offices to check for hidden listening devices, covert cameras, unauthorised mobile phone usage in offices, exam halls, hospitals or prisons and in vehicles to locate hidden GPS tracking devices.

Multiple high gain amplifiers ensure detection up to 50 meters depending on signal strength and ambient conditions. A simple, intuitive menu driven system displayed on a colour TFT screen allows the user to perform real time detection or to view events that have previously occurred. Each of the eight detected bands has an individual 20 element signal strength meter enabling the precise source of a detected signal to be located with ease.

The frequency/band of the detected signal can be seen simultaneously and the new ‘Livescan’ software shows the detected live signal pattern graphically to help identify the signal type. This can be particularly useful when searching for pulsing or burst devices such as GPS trackers. If required the user can select the bands that they wish to be detected and ignore those that they are not interested in. For example it may not be necessary to look for Wifi devices on 2.4Ghz so that band can be switched off.

An audible ‘Beep’ mode allows the user to monitor without looking at the display and a silent vibrate mode can also be used for particularly sensitive areas. Detected signals can also be listened to via the built in speaker or earphones (supplied) using the Audio Demodulation feature: useful for example when detecting conventional analogue bugging devices that contain microphones.

Up to 4000 events can be stored within the WAM108t for viewing as list or graphically. For each detected signal (no matter how long or short) it will record the Time/Date, Duration, Band/Frequency detected and Signal strength. This can be particularly useful in identifying the type of device that is being detected. For example: a string of regular short bursts in one particular band may represent those from a GSM/GPS Tracking device. These could be clearly viewed in Graph Mode as

Detects all types of RF devices:

Audio and Video Bugs, Mobile Phones, Smartphones, GPS Trackers,SMS (Texts), GSM Bugs, 3G/4G Video, Bluetooth & Wifi Devices, Burst and ‘Store & Forward’ devices

Wideband detection:

Range of 0-14 GHz – our highest ever detection coverage with 6 GHz

frequency counter for analogue and digital signals

Cellular bands:

Detect 800 MHz (4G), 900 MHz (2G/4G), 1800 MHz (2G/4G), 2100 MHz (3G),

2600MHz (4G)

8 Separate RF detectors:

RF detectors operating simultaneously to give complete RF coverage:

1 x 0-14 GHz Wideband Detector, 5 x Cellular 2G/3G/4G Detectors and 2 x Wifi/Bluetooth 2.4 GHz &

5 GHz Detectors

Wideband detection:

Range of 0-14 GHz – our highest ever detection coverage with 6 GHz

frequency counter for analogue and digital signals

Cellular bands detection:

800 MHz (4G), 900 MHz (2G/4G), 1800 MHz (2G/4G), 2100 MHz (3G),

2600MHz (4G)

Separate 2.4 GHz and new 5Ghz band detector:

For Wifi/Bluetooth/Video and other latest

generation devices

Ultra-sensitive:

Detects signals from up to 50 metres

Livescan feature:

Plots a real time detection trace on screen

Band Selection:

Feature allows user to monitor/ignore selected bands as required

Event Log:

Records Time/Date, Detected Band, Duration & Signal Strength of up to 4000 Events

​Download:

Log can be viewed on screen and downloaded to USB stick for storage/viewing on a computer

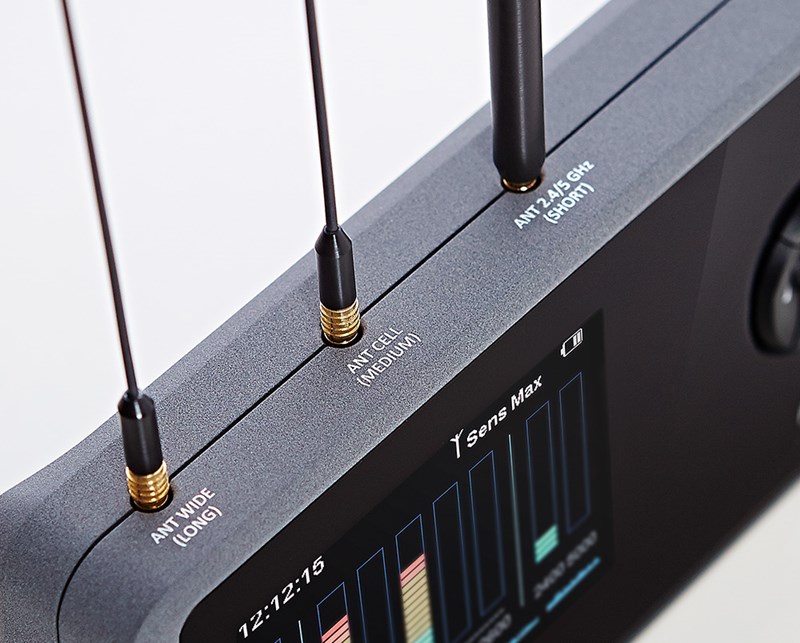

Four antennae supplied:

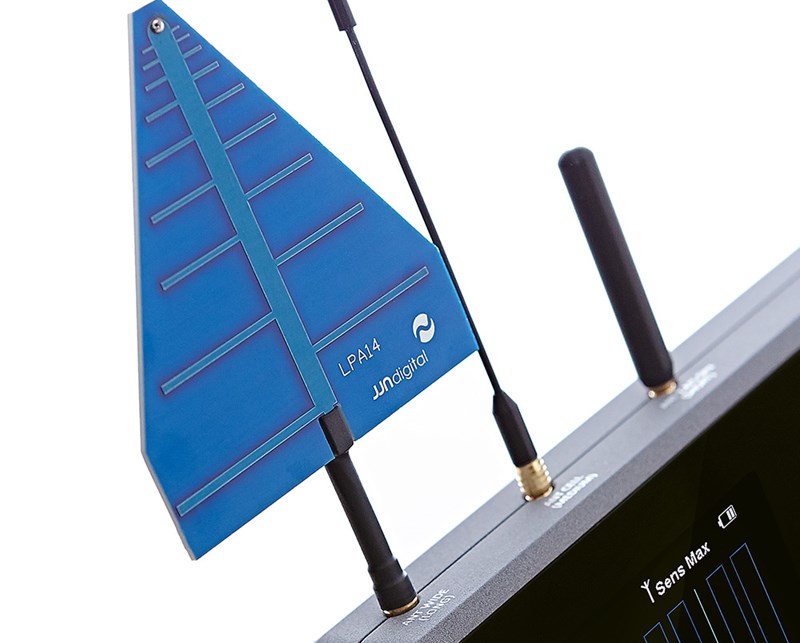

3 x omnidirectional and 1 x High Gain Directional antenna for precision

pin-pointing of the signal source

Display :

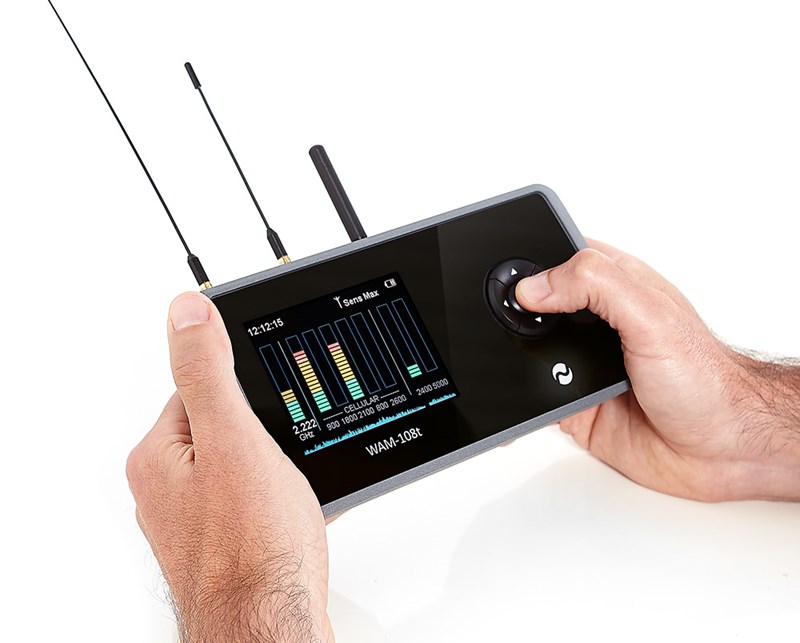

3.5 inch Colour TFT Display with easy to use menu driven operation

Audio:

Audio Demodulation through built in loudspeaker or earphones

Internal Battery:

Lithium Polymer battery pack – Charger supplied, approximately 8 to 10 hours after a full charge and 110V to 240V AC input (auto switching) with international adaptors,

What comes with WAM-108t Multiband Wireless Activity Monitor:

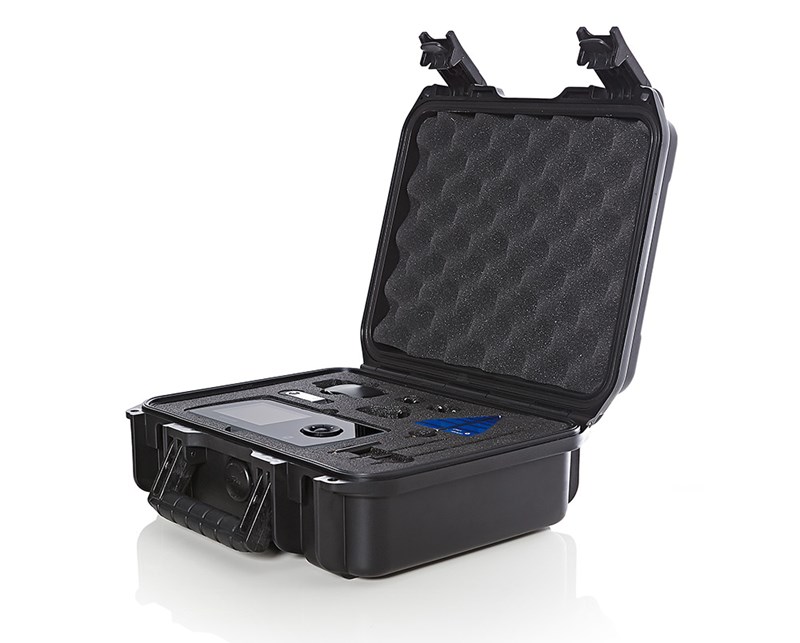

• Supplied in Heavy Duty Military Standard Carry case
• 110V to 240V AC input (auto switching) with international adaptors,
• 3 x omnidirectional and 1 x High Gain Directional antenna for precision
• USB memory stick

User manual
WAM-108t Multiband Wireless Activity Monitor is has been Designed for the ever increasing threat from more sophisticated and higher frequency RF devices, the WAM-108t provides complete coverage and logging of all activity in the surrounding area.
